Name: PP Manual Butt Fusion Welding Machine OEM Design
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
SKU: SMD-B160/50M
Price: 50.00 USD
Availability: InStock

Ana sayfa Ürünler Manuel Alın Füzyon Kaynak Makinası

PP Manual Butt Fusion Welding Machine OEM Design

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	ZEMO
Sertifika:	CE , ISO
Model numarası:	SMD-B160/50M

Ödeme & teslimat koşulları:

Min sipariş miktarı:	视频一区二区国产精品色欲_国产精品白浆无码流出网站_美女做爰猛烈动图高潮gif_日本熟妇一区二区三区在线视频
Fiyat:	negotiable
Ambalaj bilgileri:	Polywood kasalar
Teslim süresi:	Ödeme yapıldıktan sonra 3-7 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	300 takım/ay

İletişim

Detaylı ürün tanımı

Ürün adı:	Manuel Alın Kaynaklı Füzyon Makinesi	Boru Boyutu (mm:	50,63,75,90,110,125,140,160,
Heating Plate Max. Isıtma Plakası Maks. Temp. Sıcaklık:	270 ℃	Yüzeyde sıcaklık sapması (170-250 ℃):	≤±5°C
çalışma gerilimi:	220V , 50/60HZ , tek fazlı	Isıtma plakası gücü:	1KW
Planya aracı gücü:	0.7 kW	toplam güç:	1.75 kw
Ağırlık:	44kg	Garanti:	24 ay
Vurgulamak:	PP Manual Butt Fusion Welding Machine , OEM Manual Butt Fusion Welding Machine , Manual Butt Fusion Welder

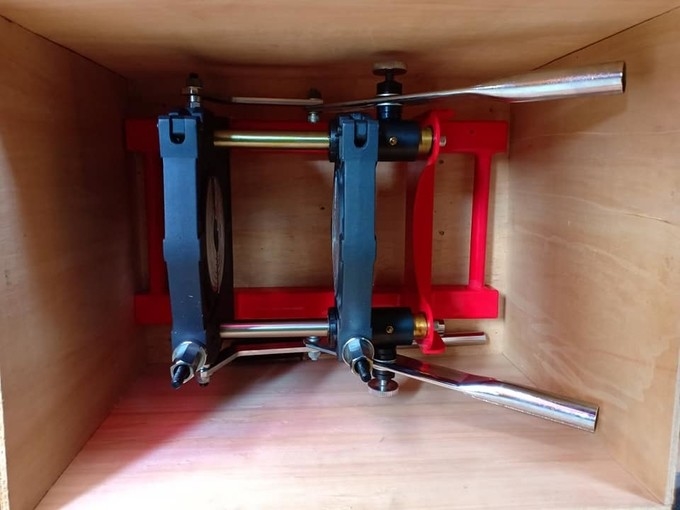

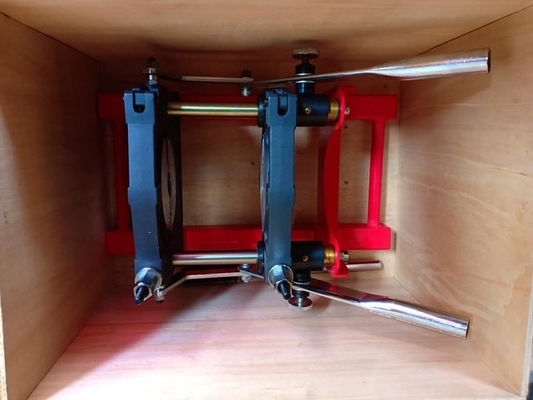

Manual Butt Weld Fusion Machine Description

Manul Butt Weld Fusion Machine is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool& heating plate, and optional parts

Manual Butt Weld Fusion Machine Specification

product name		160MM Manual Butt Weld Fusion Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Manual Butt Weld Fusion Machine Advtange

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

Manual Butt Weld Fusion Machine Guarantee and Service

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
